CS
Steel options
State the required property class, coating system and any hydrogen-embrittlement control requirement.
DIN 6921 Hex Flange Bolt product referenceRepresentative product form; final dimensions, material, finish and performance are confirmed against the buyer-approved RFQ.
Hex flange bolt sourcing
DIN 6921 Hex Flange Bolt
Hex flange bolts requested under DIN 6921. Confirm the flange series, thread, property class, finish, bearing face and inspection requirements before sourcing.
- Requested standard edition or approved drawing recorded
- Flange geometry and bearing-face detail confirmed
- Thread, length and mechanical class stated item by item
- Finish, inspection and packing coordinated as agreed
Final geometry, tolerances, material, mechanical requirements, finish, testing, documents and packing are governed by the buyer-approved RFQ and order specification.

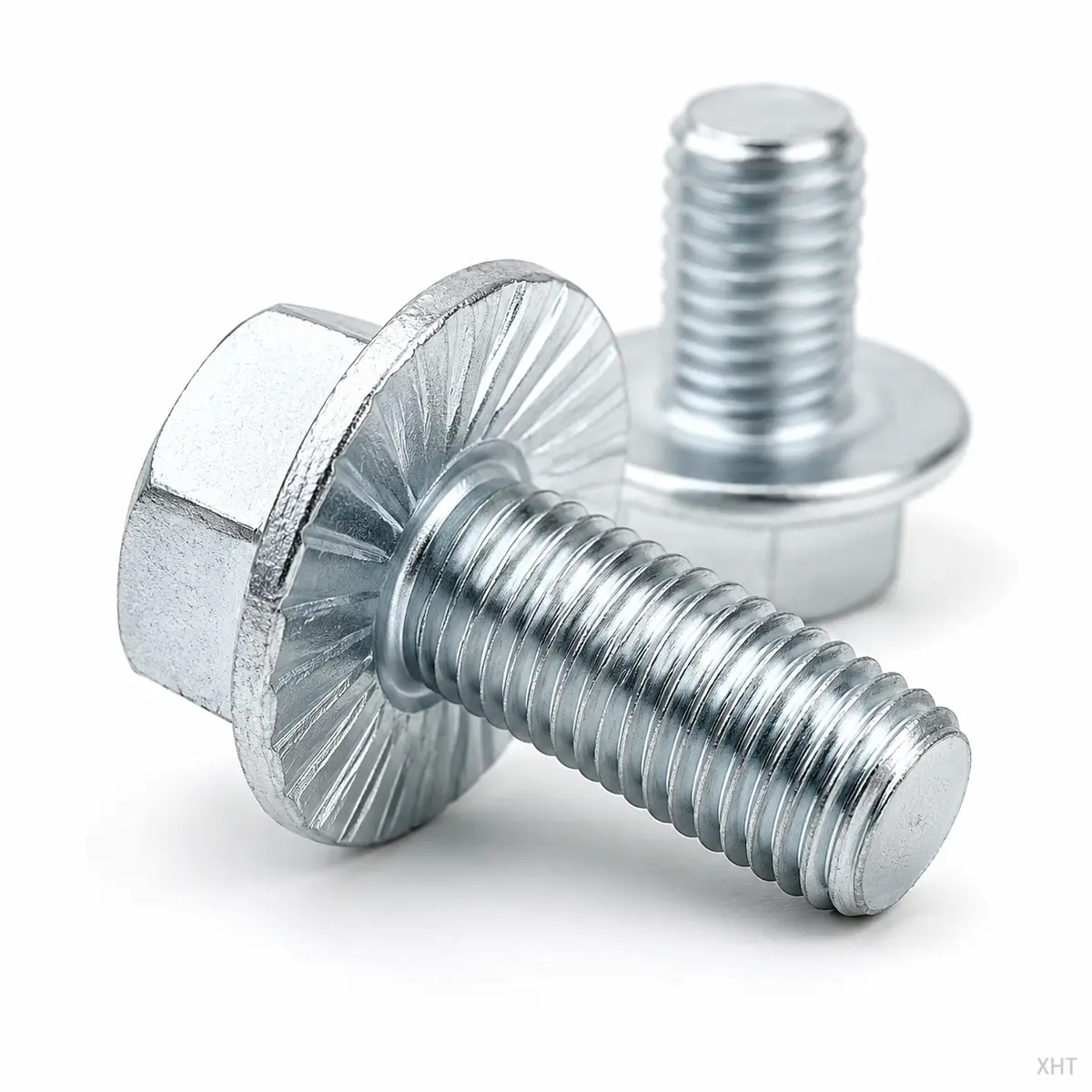

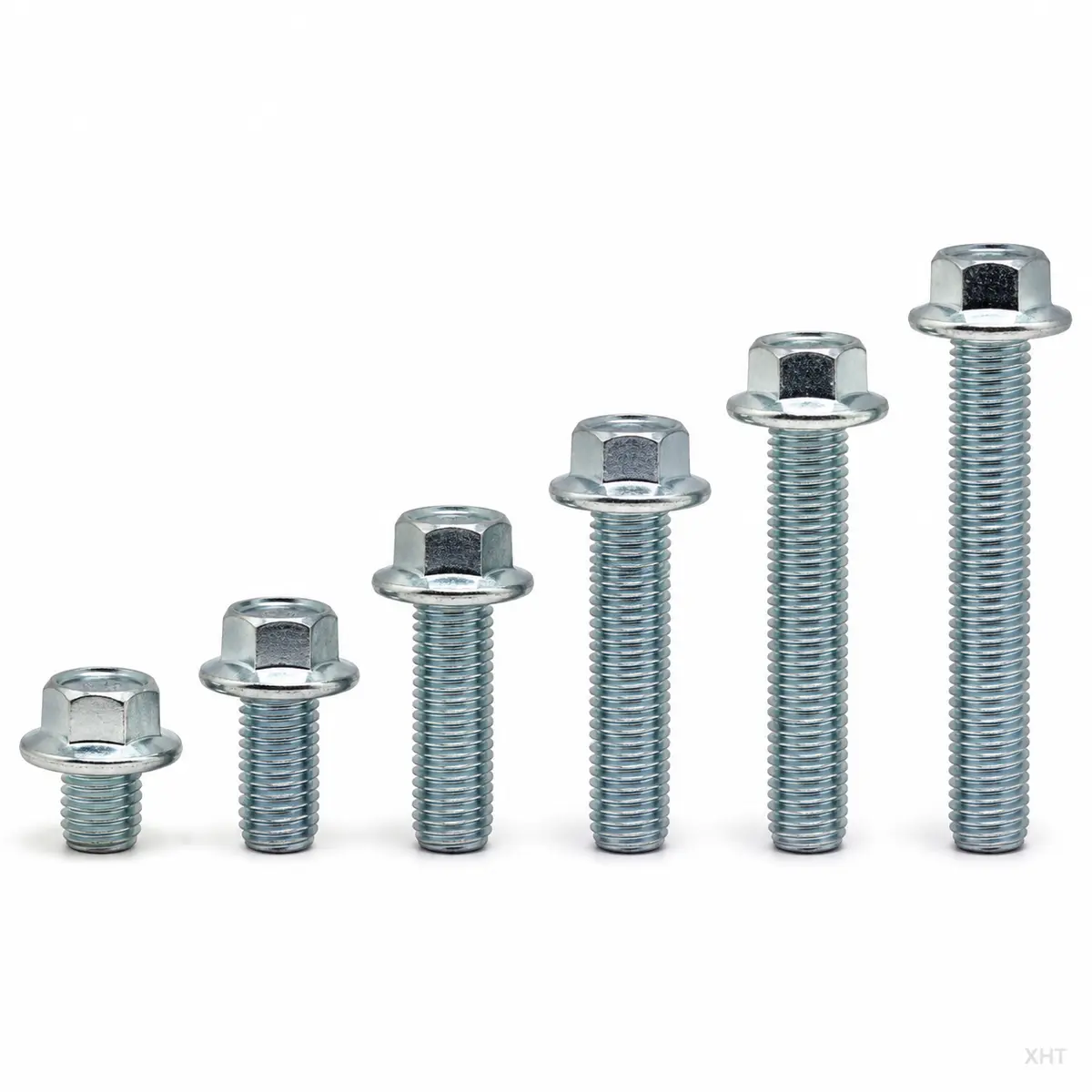

Product gallery
DIN 6921 Hex Flange Bolt product views
Clean reference views for form, functional details and typical size variation. No third-party brand marks are shown.
Core specification
Quotation requirements
Confirm the standard basis, sourcing options and order-specific requirements below.
| Field | Product information | Status |
|---|---|---|
| Requested designation | DIN 6921 hex flange bolt | Confirmed per RFQ |
| Current ISO review reference | ISO 4162:2012, hexagon bolts with flange, small series | Standard reference |
| Size | Diameter, pitch, nominal length and thread length | Confirmed per RFQ |
| Flange detail | Flange series, bearing face and any serration requirement | Confirmed per RFQ |
| Material / mechanical requirement | Steel or stainless steel with required property class or grade | Typical supply direction |
| Finish | Plain, zinc, zinc flake, hot-dip galvanized or project-specified coating | Typical supply direction |
| Packing & documents | Quantity, labels, palletization and agreed inspection records | Confirmed per RFQ |
Product overview
Confirm the flange system before comparing quotations
A flange bolt combines the driving head and a wider bearing surface, but the product name alone does not define the flange diameter, under-head form, serration, thread length or mechanical requirement. Those fields are recorded before supplier comparison.
ISO 4162:2012 is a current small-series flange-bolt reference for M5 to M16. It is used here only as a review reference; XHT does not substitute it for a requested DIN 6921 edition or buyer drawing without approval.
What to include in your RFQ
- DIN 6921 edition, ISO basis or approved drawing
- Diameter, pitch, length and thread length
- Flange series and serrated or plain bearing face
- Material and property class or stainless grade
- Finish and coating performance requirement
- Quantity, packing, inspection and documentation
Ordering range
Common RFQ selections
Use the standard edition or approved drawing as the dimensional authority; the selections below cover frequent export enquiries.
| Parameter | Common supply options | Quotation control |
|---|---|---|
| Common diameters | M5, M6, M8, M10, M12, M14, M16, M18, M20 | Confirm diameter and pitch |
| Coarse pitches | 0.8, 1.0, 1.25, 1.5, 1.75, 2.0 and 2.5 mm by diameter | State coarse or fine thread |
| Flange face | Serrated or non-serrated; small or specified series | Drawing or standard edition required |
| Thread form | Full or partial thread; length by application | State total and thread length |
| Property class | 8.8, 10.9, 12.9; stainless options by RFQ | Mechanical requirements govern |
| Finish | Zinc plated, zinc flake, black, plain/oiled or project coating | State coating system and performance |
Custom dimensions, geometry, materials, finishes, inspection plans and packing can be reviewed against an approved drawing or physical sample. Availability is confirmed item by item.
Verified technical note
Current ISO scope used for review
Official catalogue scope is summarized without reproducing proprietary dimensional tables.
| Reference / field | Verified scope used on this page | RFQ implication |
|---|---|---|
| ISO 4162:2012 | Hexagon bolts with flange, small series; M5 to M16; product grade A except the driving feature, which is product grade B | Confirm that the small-series ISO geometry is acceptable before treating it as the governing basis. |
| Mechanical classes | The ISO catalogue scope includes steel property classes 8.8 to 10.9 and stainless grade A2-70 | State the required class or grade and do not infer it from the product name. |
Specification control: DIN 6921 and ISO 4162 must not be treated as interchangeable unless the buyer approves the applicable geometry and edition. Full proprietary standard tables are not reproduced.
Official references: ISO 4162:2012 catalogue entry
Materials & supply directions
Options reviewed for the actual application
These are enquiry directions, not a claim that every combination is stocked, approved or interchangeable.
SS
Stainless options
State the stainless grade, passivation and marking or traceability requirement.
F
Bearing face & finish
Confirm plain or serrated flange and treat coating performance separately from base material.
Quality & order coordination
Checks follow the approved order requirements
No test report, certification, approval or traceability level is implied unless it appears in the quotation and order specification.
01
Specification record
Standard edition, drawing revision and critical RFQ fields are recorded.
02
Source matching
Supplier options are compared against the confirmed product and application requirements.
03
Agreed inspection
Inspection scope and records are coordinated only as stated in the order.
04
Packing follow-up
Bag, box, pallet, labels, protection and consolidation details are followed up.
Product RFQ
Request a quotation for DIN 6921 Hex Flange Bolt
Attach a drawing, specification, photo, product list or project requirement and identify fields that cannot be substituted.
- DIN 6921 edition, ISO basis or approved drawing
- Diameter, pitch, length and thread length
- Flange series and serrated or plain bearing face
- Material and property class or stainless grade
- Finish and coating performance requirement
- Quantity, packing, inspection and documentation
Fast quotation route
Send your product requirements
Use the full RFQ form to attach drawings, specifications or a multi-item list. Include the product standard or drawing, size, material, finish, quantity and destination.
