Industrial screws
Search the published products below or start an RFQ for another screw type. Final supply is controlled by the buyer-approved standard, drawing or sample—not by a catalogue name alone.
Final head and drive, thread and point, drilling capacity, substrate stack, material, hardness, finish, washer, packing and documents follow the buyer-approved quotation.
Published products
Use a published product page when its standard and form match your requirement. Availability, testing, documents and packing are confirmed in the quotation.

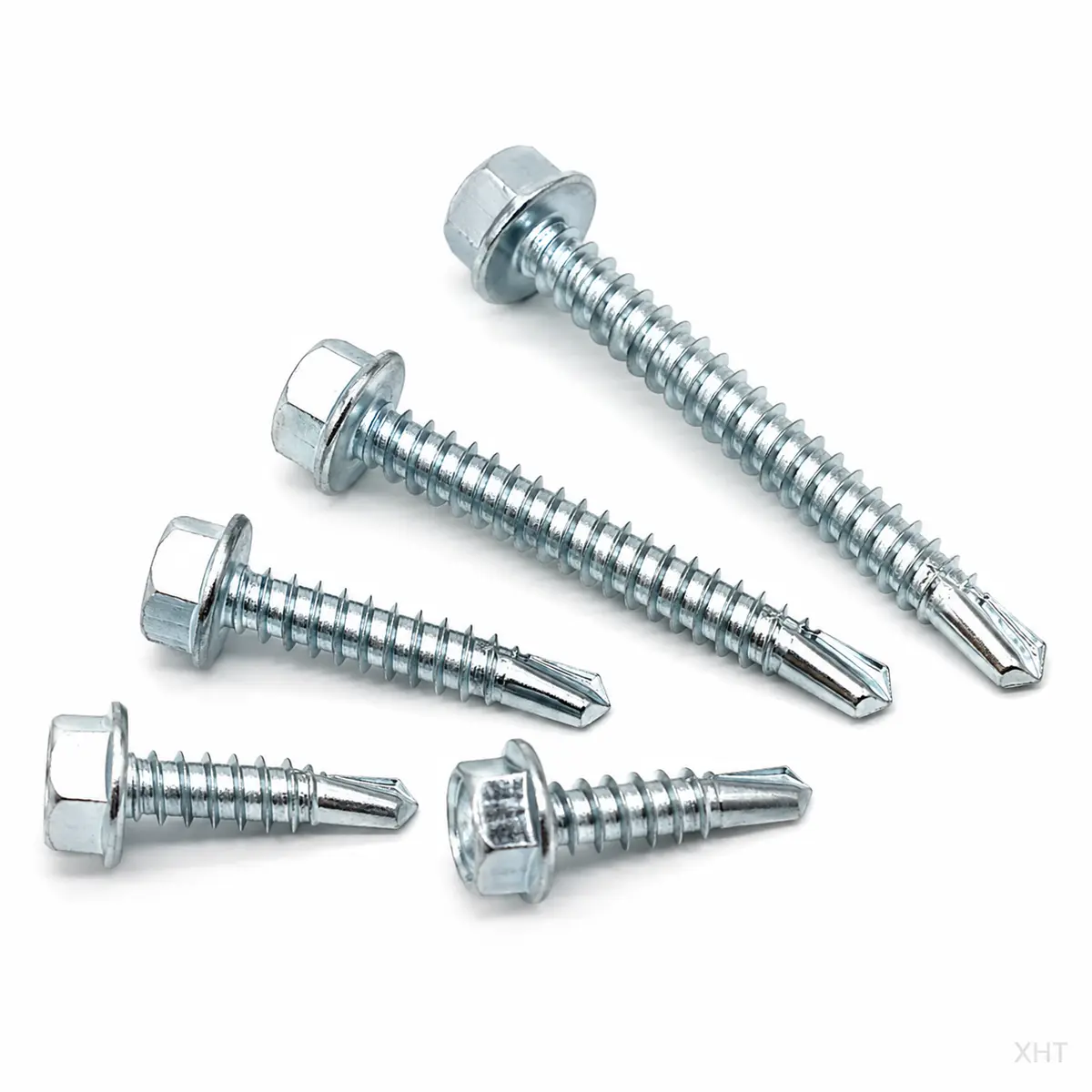

Legacy DIN 7504-K buyer references are mapped to ISO 15480 when applicable. Quote by thread size, length, drilling requirement, substrate stack, finish and optional sealing washer.
ISO 15480 reference scope: steel · ST2.9–ST6.3 · product grade A
DIN 7504:1995-09 is withdrawn. Confirm the governing standard edition or buyer-approved drawing before order.

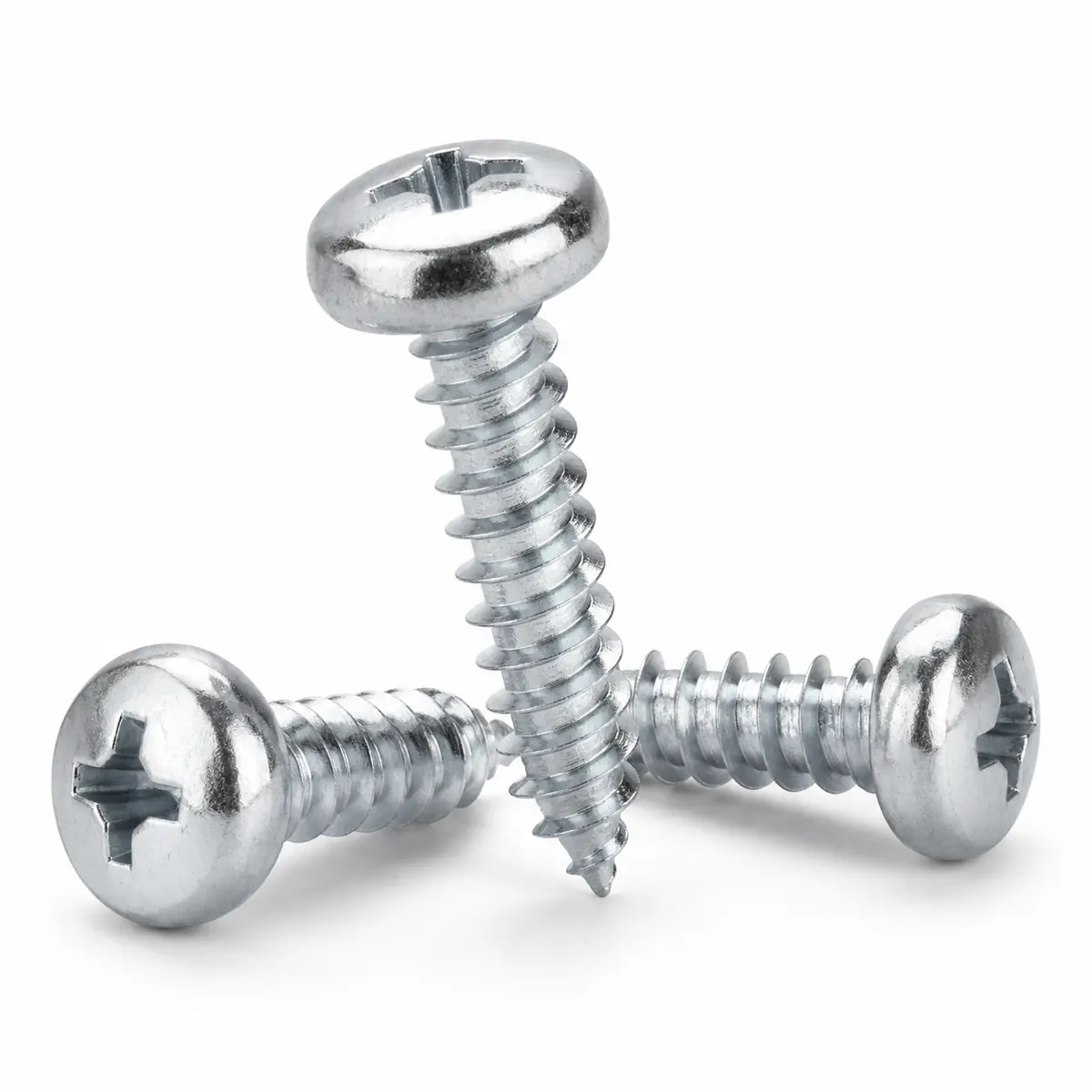

For sheet-metal and general fastening enquiries where a pan head and self-tapping thread are specified. Quote by standard edition, thread size, length, point, material and finish.
Request basis: DIN 7981 / ISO 7049 · cross recessed · pan head
Confirm the governing standard edition, point form, pilot hole and receiving material before order.

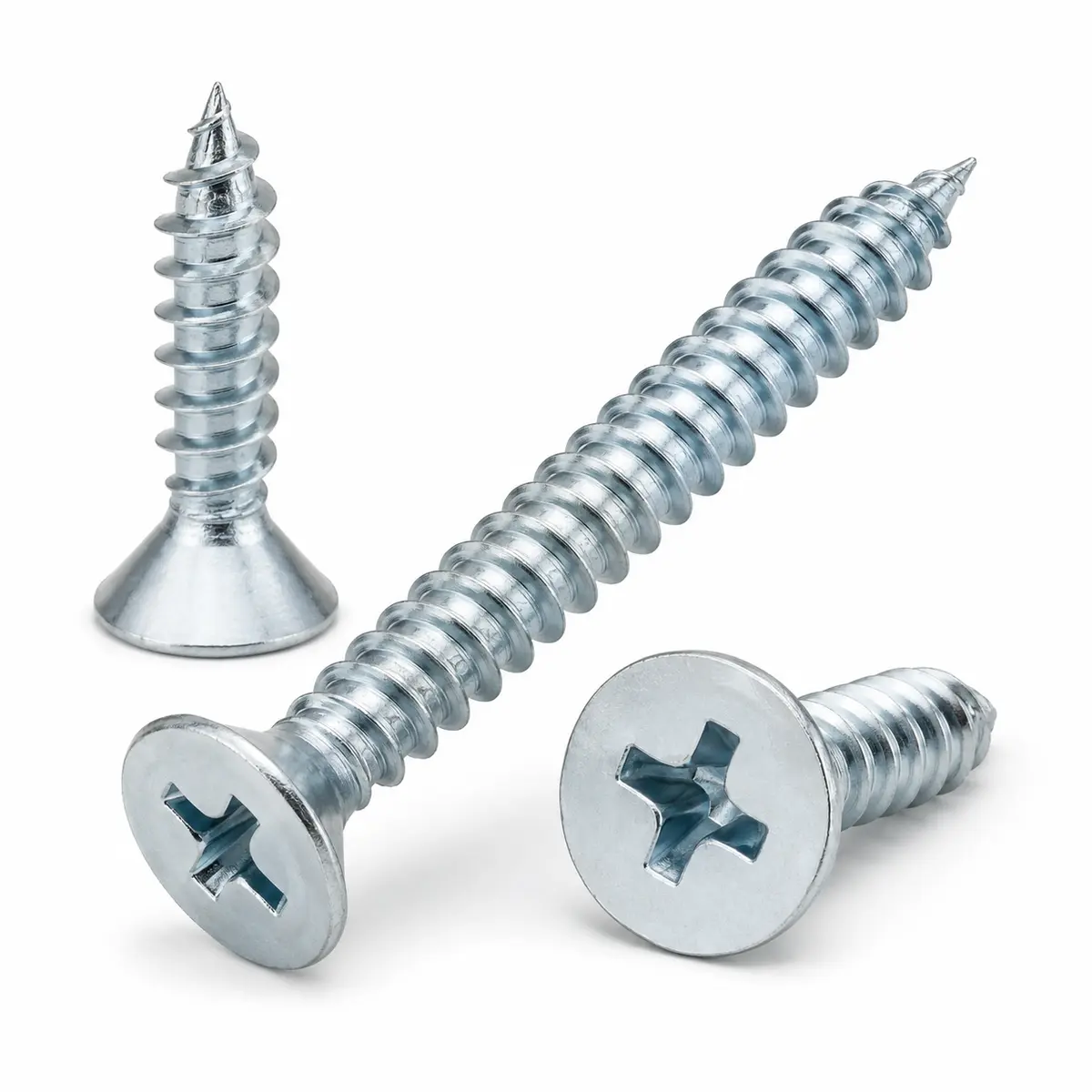

For applications requiring a flush countersunk head and a self-tapping thread. Quote by standard edition, thread size, length, point, countersink, material and finish.
Request basis: DIN 7982 / ISO 7050 · cross recessed · countersunk
Confirm the mating countersink, point form, pilot hole and receiving material before order.

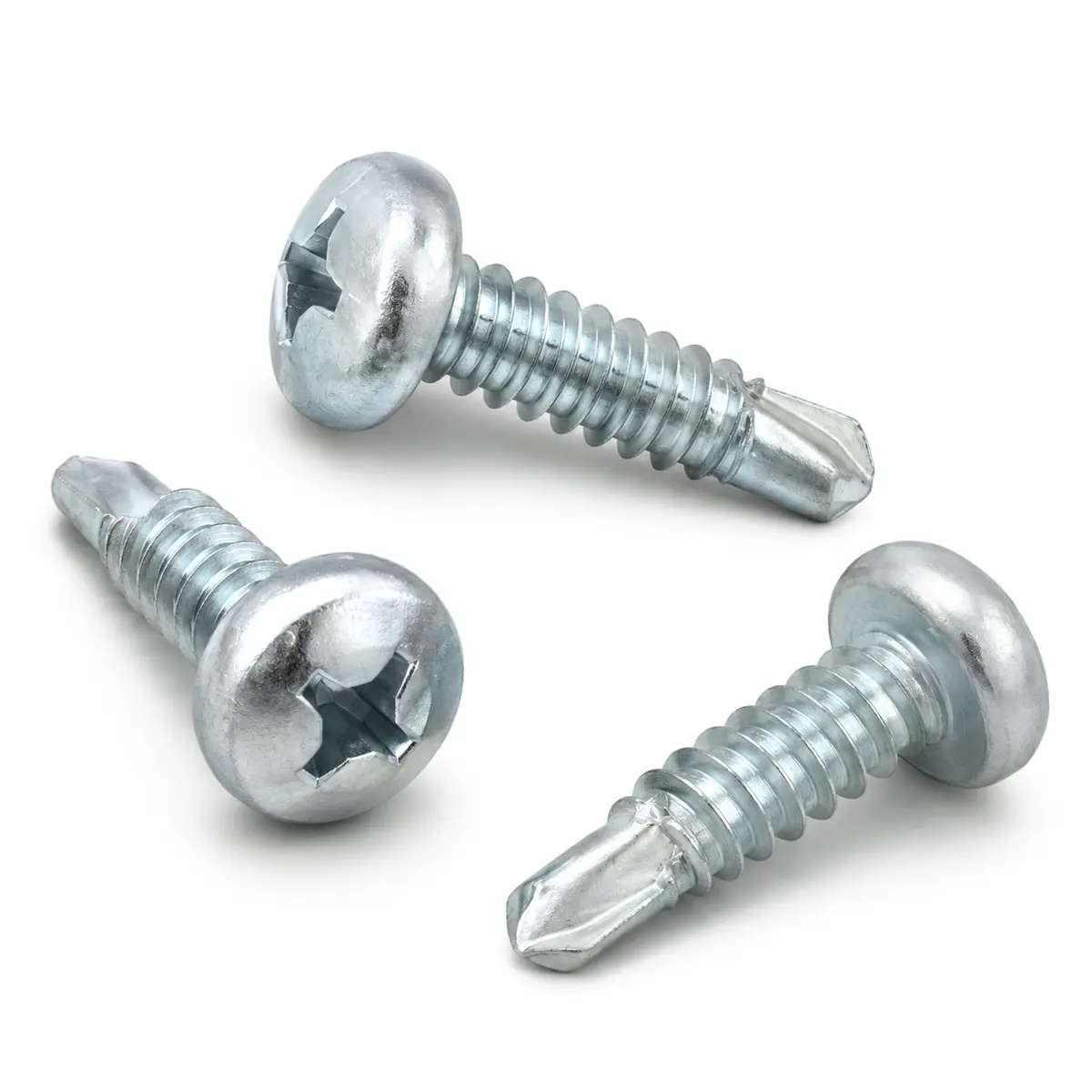

For sheet-metal assemblies where drilling and fastening are combined with a pan-head form. Quote by diameter, length, drilling capacity, substrate stack, material and finish.
Request basis: DIN 7504-N / ISO 15481 · pan head · drill point
Confirm the standard edition, drilling capacity and complete substrate stack before order.

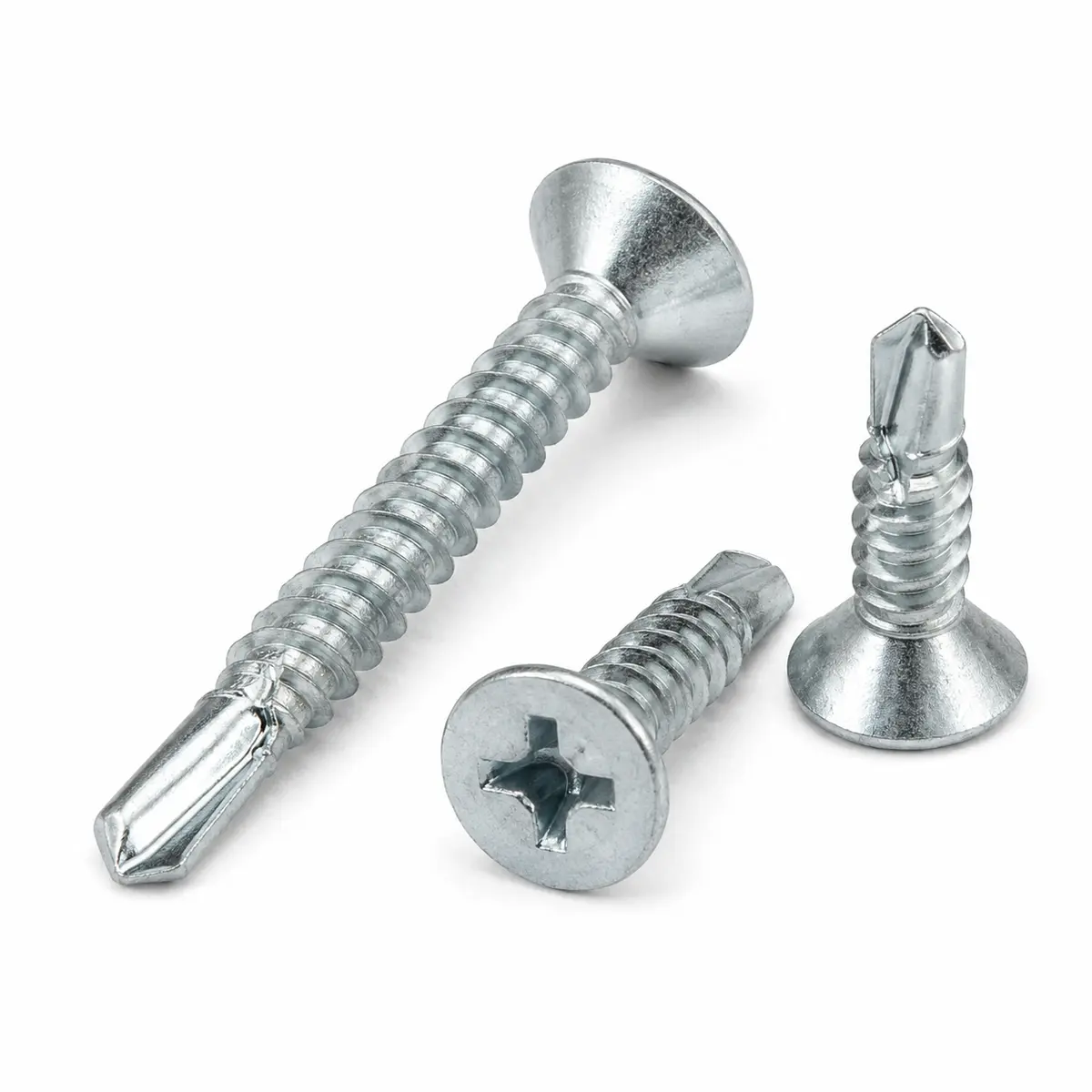

For flush-finish sheet-metal fastening where a countersunk head and drill point are specified. Quote by diameter, length, drilling capacity, countersink, material and finish.
Request basis: DIN 7504-P / ISO 15482 · countersunk · drill point
Confirm the mating countersink, drilling capacity and substrate stack before order.

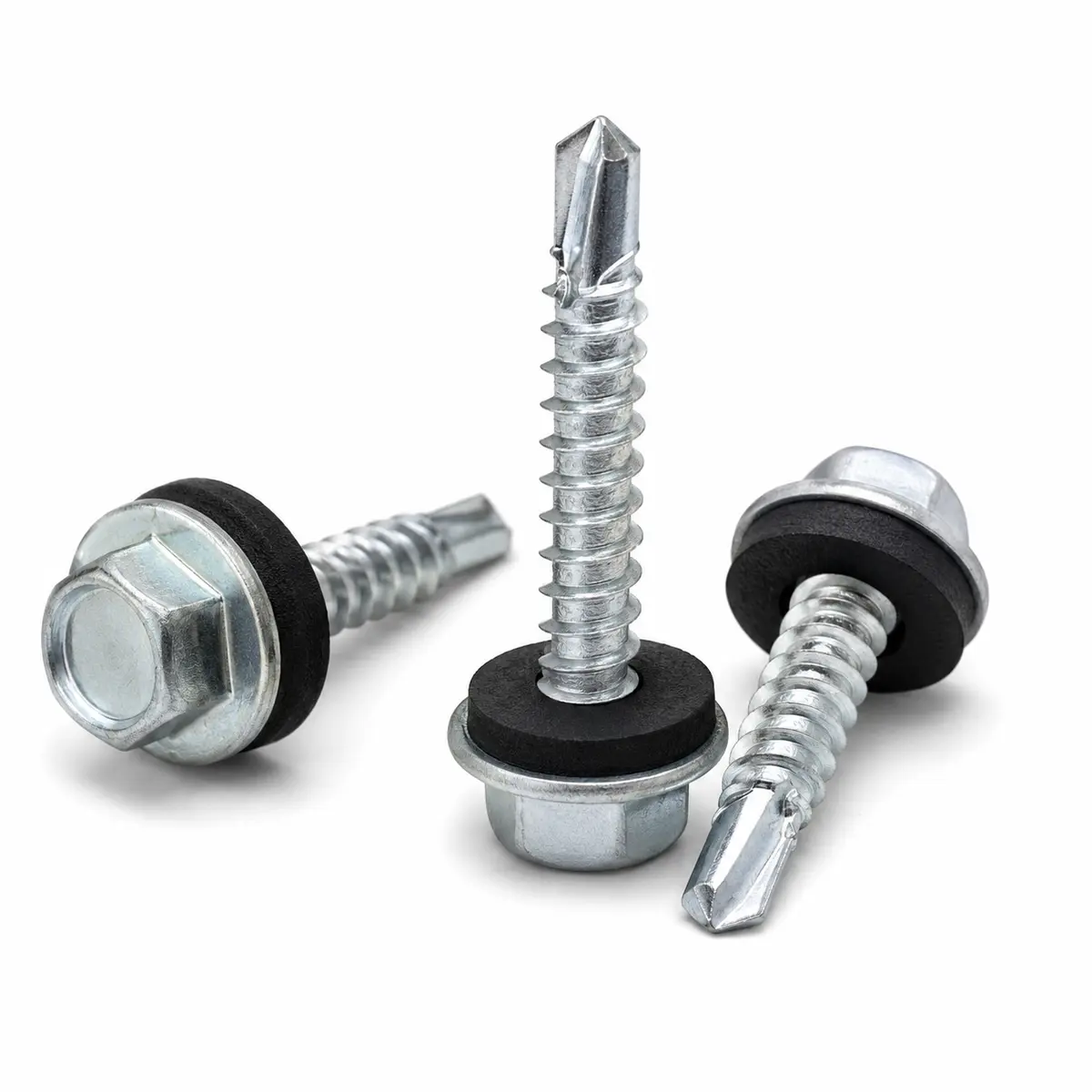

For roofing and cladding enquiries requiring a screw-and-washer assembly. Quote by substrate stack, drilling capacity, screw material and finish, washer construction and exposure conditions.
Request basis: screw + bonded EPDM sealing washer · application controlled
Sealing and corrosion performance require buyer-approved assembly, installation and test requirements.

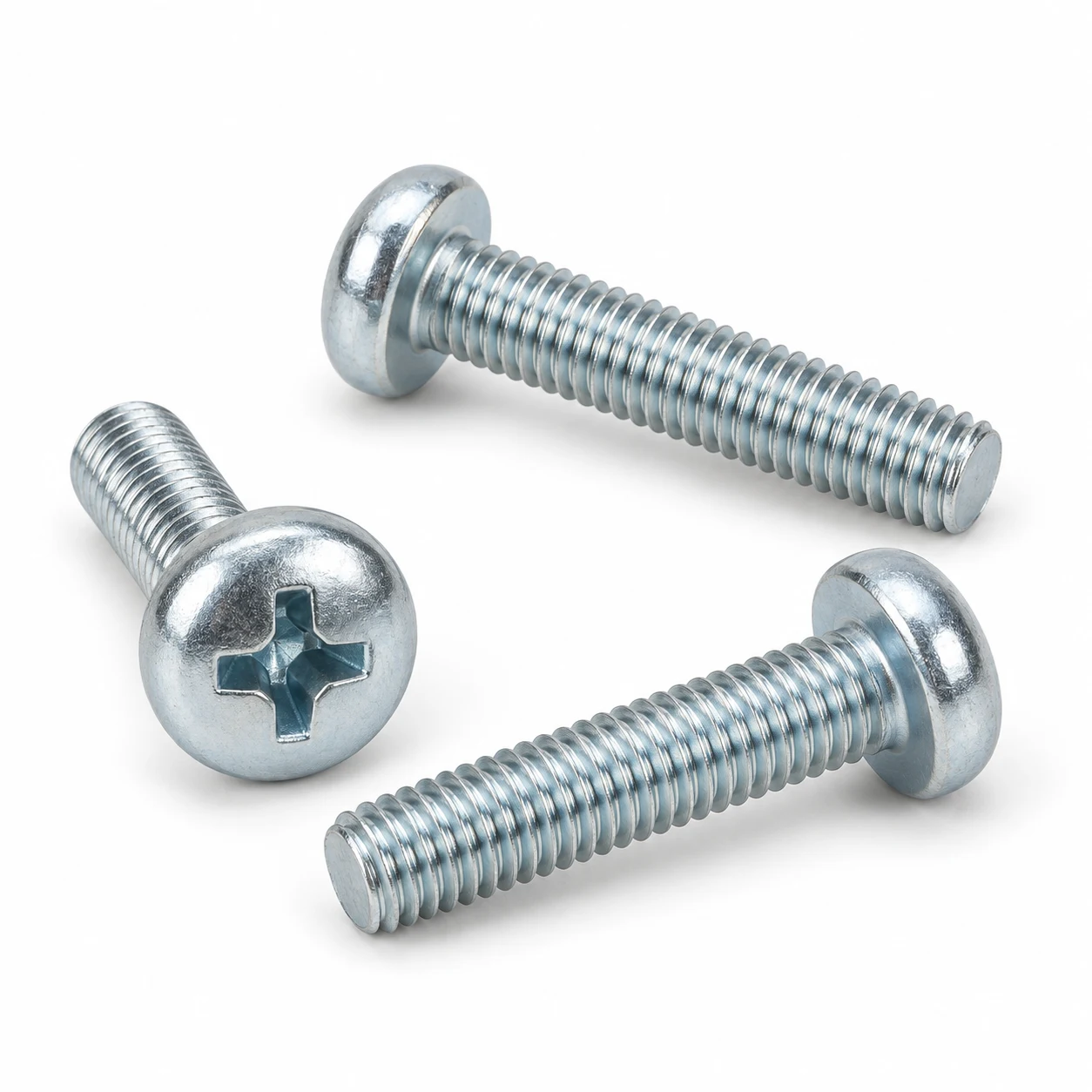

Pan head machine screws with metric threads for tapped components or matching nuts. Confirm the recess type, head dimensions and material with the purchase specification.

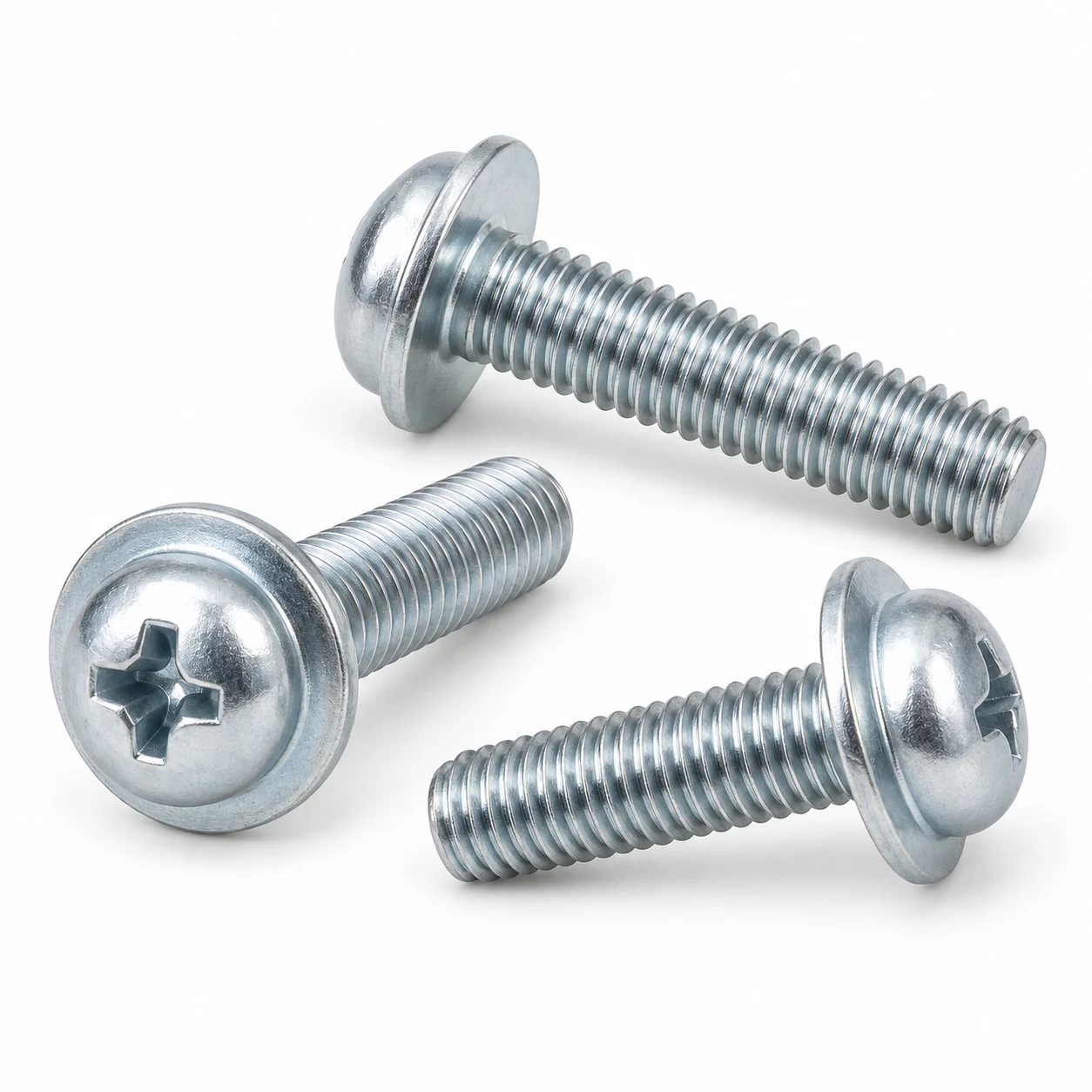

Cross-recessed pan head machine screws with an integral collar for a broader bearing face. The collar belongs to the head geometry and must match the specified standard.

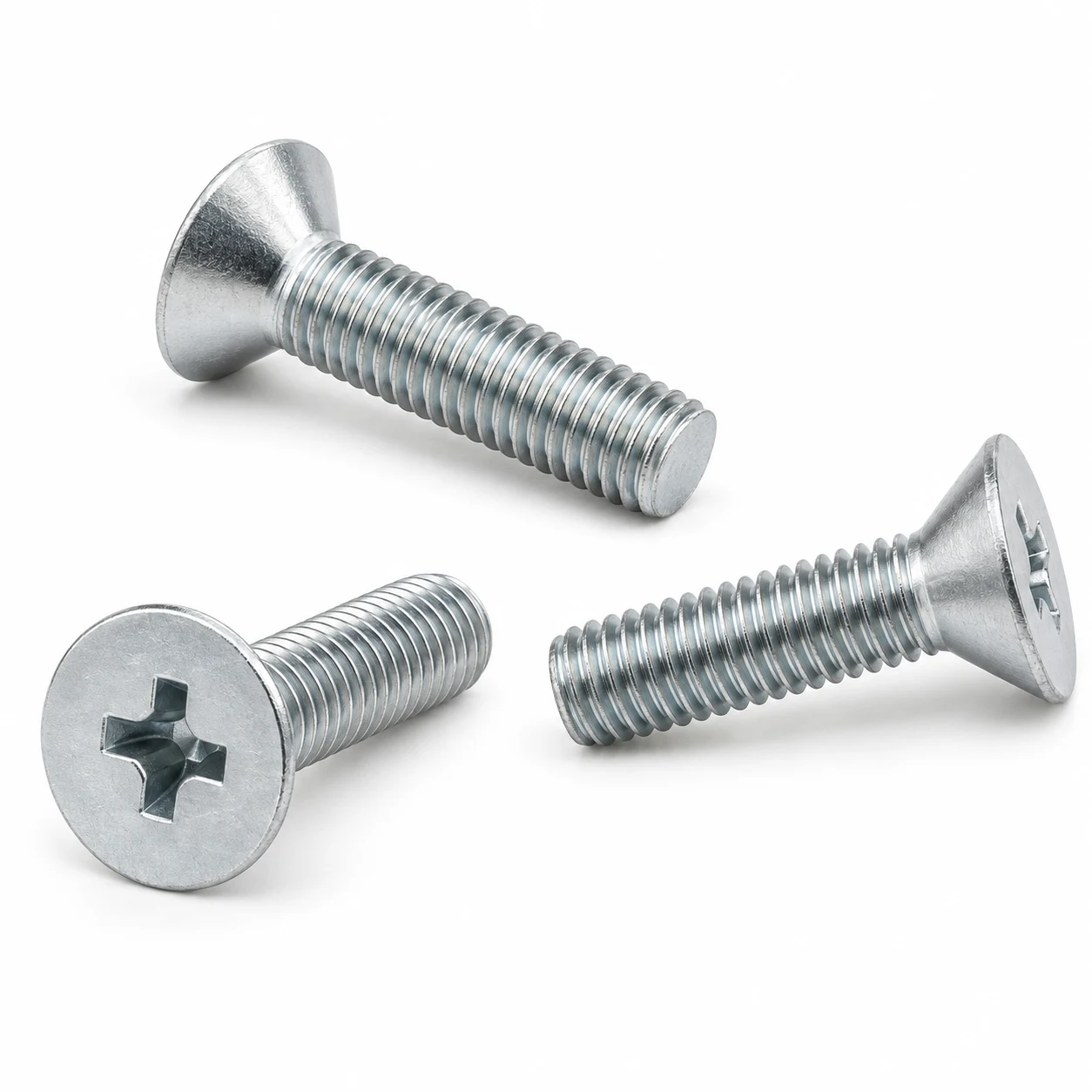

Cross-recessed countersunk flat head screws for specified mating countersinks. Match head geometry, thread and drive to the assembly drawing.
Fine- and coarse-thread installation screws, including selected bugle and wafer-head forms. Match the point, thread and head to the substrate and fixture.
Self-drilling screws for specified window-profile and reinforcement assemblies. Confirm the profile stack, screw head and drill-point requirement.
Fixed external-thread attachment in compatible sheet metal, with the mating nut and installed projection defined.
Drawing- or standard-defined screw assemblies that require a specified six-lobe recess and compatible installation bit.
Countersunk thread-forming joints in suitable prepared holes, subject to receiving-material and assembly verification.
Send the standard, drawing, BOM, approved sample or product photo for a controlled sourcing review.
Send the standard, drawing or product photo and XHT will review the closest sourcing route.
These links open an enquiry; they are not catalogue, stock or certification claims. Send the standard, drawing or approved sample so the correct head, drive, thread and point can be identified.
Buying & RFQ guide
A screw name alone is not enough. Use these fields to receive a comparable, specification-controlled quotation.
Identify the quotation basis and installation conditions.
XHT reviews screw projects against buyer-controlled input.
Specification control: DIN 7504 is a withdrawn legacy designation. ISO 15480:2019 may apply to specified steel K-type self-drilling screws, but stainless materials, sealing-washer assemblies, drilling capacity, corrosion resistance and roof-sealing performance require separate buyer approval. Commercial names and standards are not automatically interchangeable.
Screw RFQ
Attach a drawing, product list, photo or sample reference. Mark every field that must not be substituted. Testing, certificates, traceability, corrosion performance and packing apply only when written into the quotation and order.
