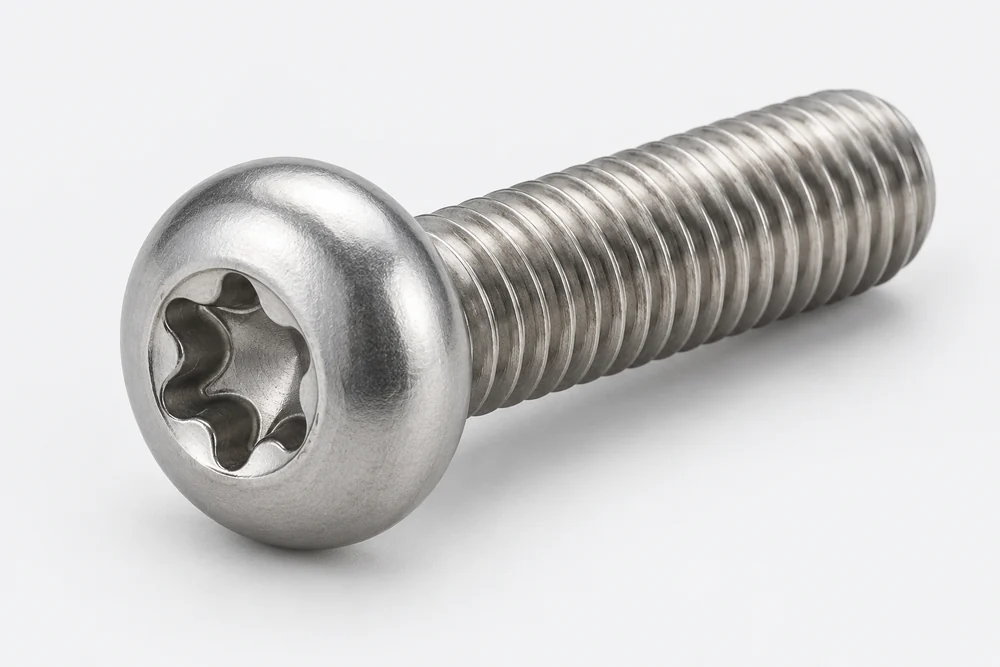

Hexalobular Drive Screws — TORX® EnquiriesIllustrative product reference. Final geometry, material and finish follow the approved specification.
Screws
Hexalobular Drive Screws — TORX® Enquiries
内六瓣花形驱动螺钉（TORX®需求）
Hexalobular internal drive screws use a six-lobe recess and are selected with the complete screw specification. ISO 10664:2014 defines the basic shape, dimensions and gaging of the internal driving feature; it does not define the entire screw, material or strength class. TORX® is a proprietary drive-system designation. If a branded system is required, state it explicitly for source and documentation review. XHT reviews each enquiry by product standard or drawing, with source, configuration and supply scope confirmed per request.
XHT coordinates partner-factory sourcing, specification review, agreed inspection, order consolidation and export arrangements. The quotation confirms the actual manufacturer, supply scope, MOQ, lead time and available documents.
Enquiry references are not a stock list. Configuration, source, availability and inspection scope are confirmed in the written quotation.
Product specification
Key details for your enquiry
Provide a complete specification for each item so geometry, materials, treatment and assembly requirements can be reviewed together.
| Field | Quotation basis |
|---|---|
| Types / configuration |
|
| Materials / property requirements |
|
| Finishes / treatment |
|
| RFQ specification checks |
|
Application and installation
Match the part to your assembly
Application review
Drawing- or standard-defined screw assemblies that require a specified six-lobe recess and compatible installation bit.
Installation / assembly review
- Identify the actual mating component, installation tool and bit, target assembly torque and any controlled lubrication or locking requirement.
- Agree head and recess inspection, drive gaging, thread gaging, dimensional records and mechanical tests required by the purchased specification. Installation verification uses the intended tool and joint.
What to include in your RFQ
- Provide thread diameter, pitch and fit; length and its datum; head profile and dimensions; recess size and depth; and governing standard edition or drawing revision.
- Identify the actual mating component, installation tool and bit, target assembly torque and any controlled lubrication or locking requirement.
- Agree head and recess inspection, drive gaging, thread gaging, dimensional records and mechanical tests required by the purchased specification. Installation verification uses the intended tool and joint.
- Send quantity, packing and destination with requested sample approval, lot identification or inspection documents. All configurations, documentation and delivery details remain request-dependent.
Related products
Complete the purchase list
DIN 965 Countersunk Machine Screw
Review the related component against the specified assembly and purchase requirements.
Custom Bolts & Screws
Review the related component against the specified assembly and purchase requirements.
DIN 7500-M Countersunk Thread-Forming Screws
Review the related component against the specified assembly and purchase requirements.
Product enquiry
Request Hexalobular Drive Screws — TORX® Enquiries
Send your item list, drawing or approved reference, dimensions, material, finish, quantity and destination.
