Rail compatibility
Head and neck geometry are matched to the named rail profile or buyer drawing.
Solar T-BoltRepresentative product image. Final dimensions, material, finish and packing follow the approved RFQ.
Solar rail fastener sourcing
Solar T-Bolt
T-head bolts for photovoltaic rail slots and mounting channels, controlled by head geometry, anti-rotation fit, thread size, length and system material.
- Rail manufacturer, slot drawing or approved sample
- T-head width, thickness and neck geometry
- Thread diameter, pitch and length
- Anti-rotation or serration requirement
- Material, finish, quantity and packing
Catalogue ranges are RFQ guidance. Final compliance is controlled by the buyer-approved standard, drawing, sample and purchase order.
Quotation control
Information used to build the quotation
The exact standard or drawing, dimensions, material, finish, quantity and destination are confirmed before sourcing.
| Field | Product information | Order control |
|---|---|---|
| Requested product | Solar rail T-bolt | Drawing, rail profile or approved sample confirmed |
| Head geometry | Width, length, thickness, radius and neck dimensions | Confirmed per RFQ |
| Thread | Metric diameter, pitch, length and tolerance | Confirmed per RFQ |
| Rail fit | Insertion method, rotation and anti-pull-out requirements | Confirmed per RFQ |
| Material / finish | Stainless A2/A4 or specified coated carbon steel | Confirmed per RFQ |
| Assembly | Matching nut, washer, packaging and traceability as ordered | Confirmed per RFQ |
Product overview

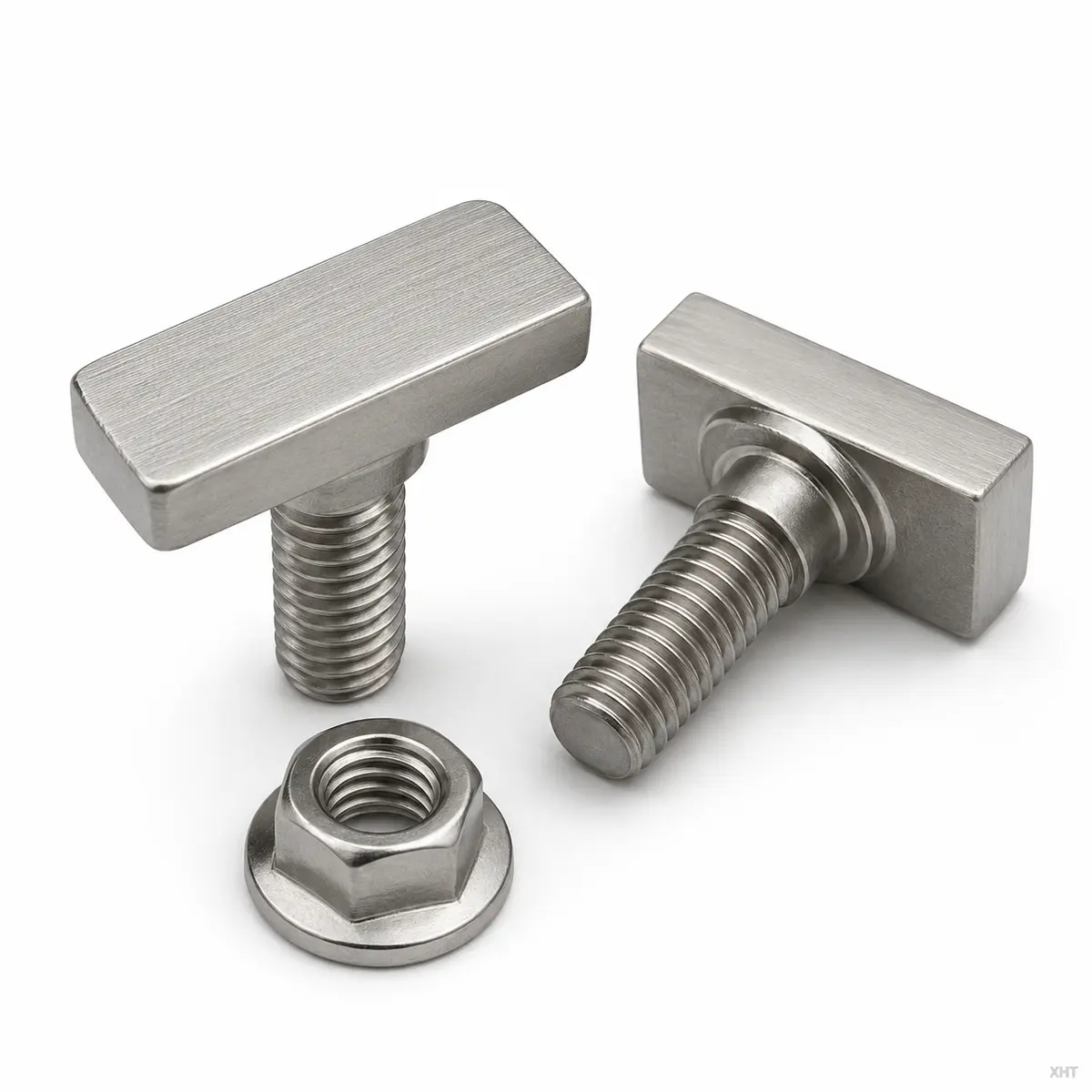

Rail-slot geometry controls compatibility
Solar T-bolts are not interchangeable by thread size alone. Head width, thickness, neck form and insertion method must suit the specific rail slot or mounting channel.
Provide the rail drawing, system name or an approved sample whenever possible. The bolt, nut and washer combination should be reviewed as one assembly.
What to include in your RFQ
- Rail manufacturer, slot drawing or approved sample
- T-head width, thickness and neck geometry
- Thread diameter, pitch and length
- Anti-rotation or serration requirement
- Material, finish, quantity and packing
Common ordering range
Common RFQ selections
Common solar T-bolt enquiry directions. Head and neck dimensions are confirmed from the rail profile or drawing.
| Selection | Common enquiry options | Control |
|---|---|---|

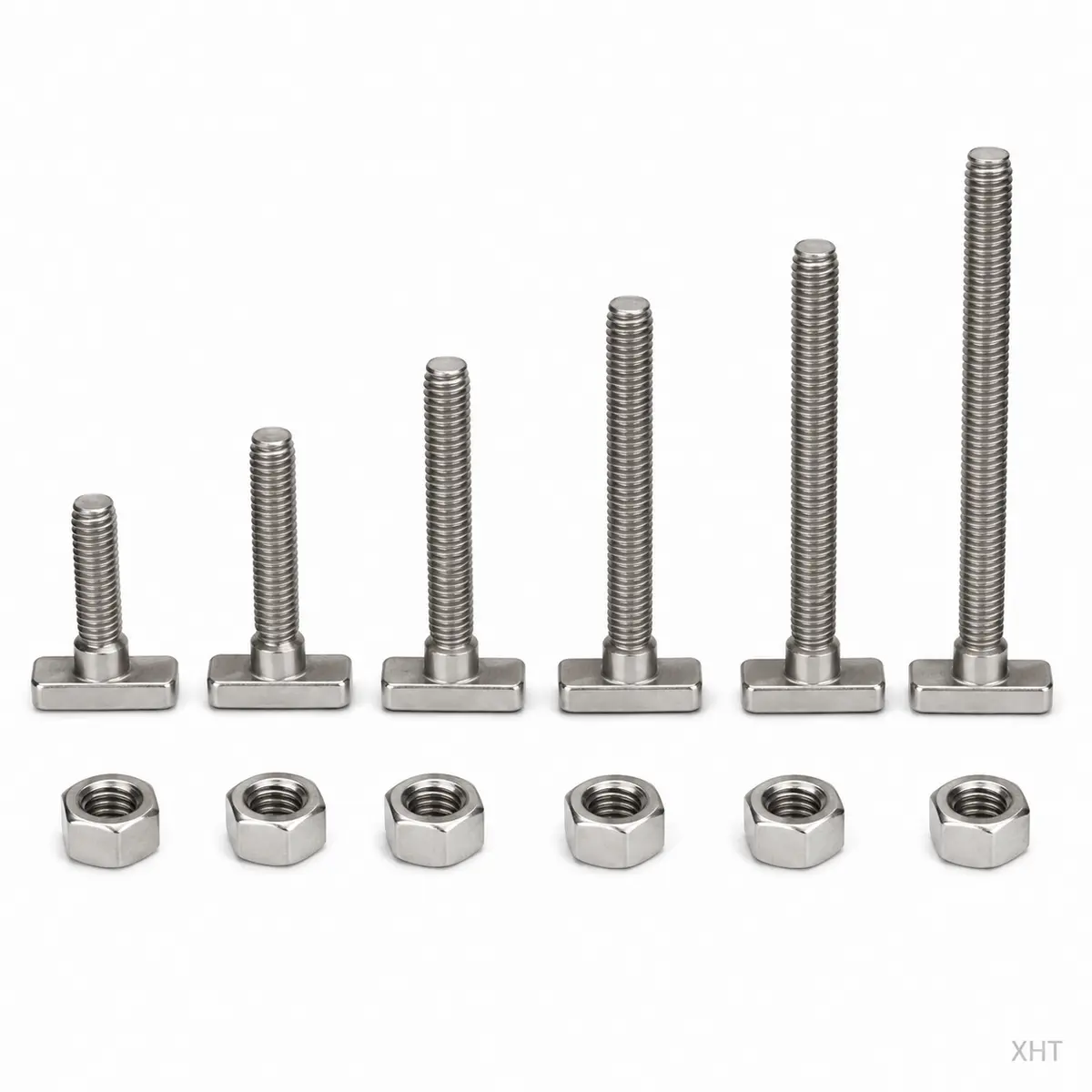

| Common threads | M8, M10 and M12 | Confirmed per RFQ |
| Length | Selected for rail, clamp, washer and nut stack height | Confirmed per RFQ |
| Head / neck | T-head width, thickness, length and anti-rotation feature per rail | Confirmed per RFQ |
| Material options | Stainless A2 or A4; coated carbon steel by project specification | Confirmed per RFQ |
| Assembly options | Flange nut, lock nut and washer supplied individually or as sets | Confirmed per RFQ |
| Custom supply | Special head, serration, slot fit and packaging by drawing or sample | Confirmed per RFQ |
Custom supply: Non-standard dimensions, materials, finishes and packing can be reviewed against a drawing, approved sample or complete specification.
Materials & applications
Options matched to the working environment
Options shown are sourcing directions, not a claim that every combination is stocked or interchangeable.
02
Stainless assemblies
A2 and A4 options support common outdoor solar applications.
03
Kit packing
Bolts, nuts and washers can be counted and packed as installation kits.
Quality & order coordination
A controlled route from RFQ to shipment
Inspection, certificates, traceability and packing are supplied only when agreed in the quotation and order.
01
Requirement check
Standard, drawing revision and critical dimensions are recorded.
02
Source matching
Cluster suppliers are compared against the confirmed specification.
03
Agreed inspection
Dimensions, finish and documents are checked to the agreed scope.
04
Packing follow-up
Labels, protection, consolidation and shipment details are coordinated.
Product RFQ
Request a quotation for Solar T-Bolt
Send a drawing, specification, photo, product list or project requirement. Mark any field that cannot be substituted.
- Rail manufacturer, slot drawing or approved sample
- T-head width, thickness and neck geometry
- Thread diameter, pitch and length
- Anti-rotation or serration requirement
- Material, finish, quantity and packing
Fast quotation route
Send your product requirements
Include the product standard or drawing, size, material, finish, quantity and destination. Files up to 5 MB can be attached in the RFQ form.Maximum 3 MB per file.
