Sheet-metal assembly
Efficient one-side installation for enclosures, ducting and fabricated panels.

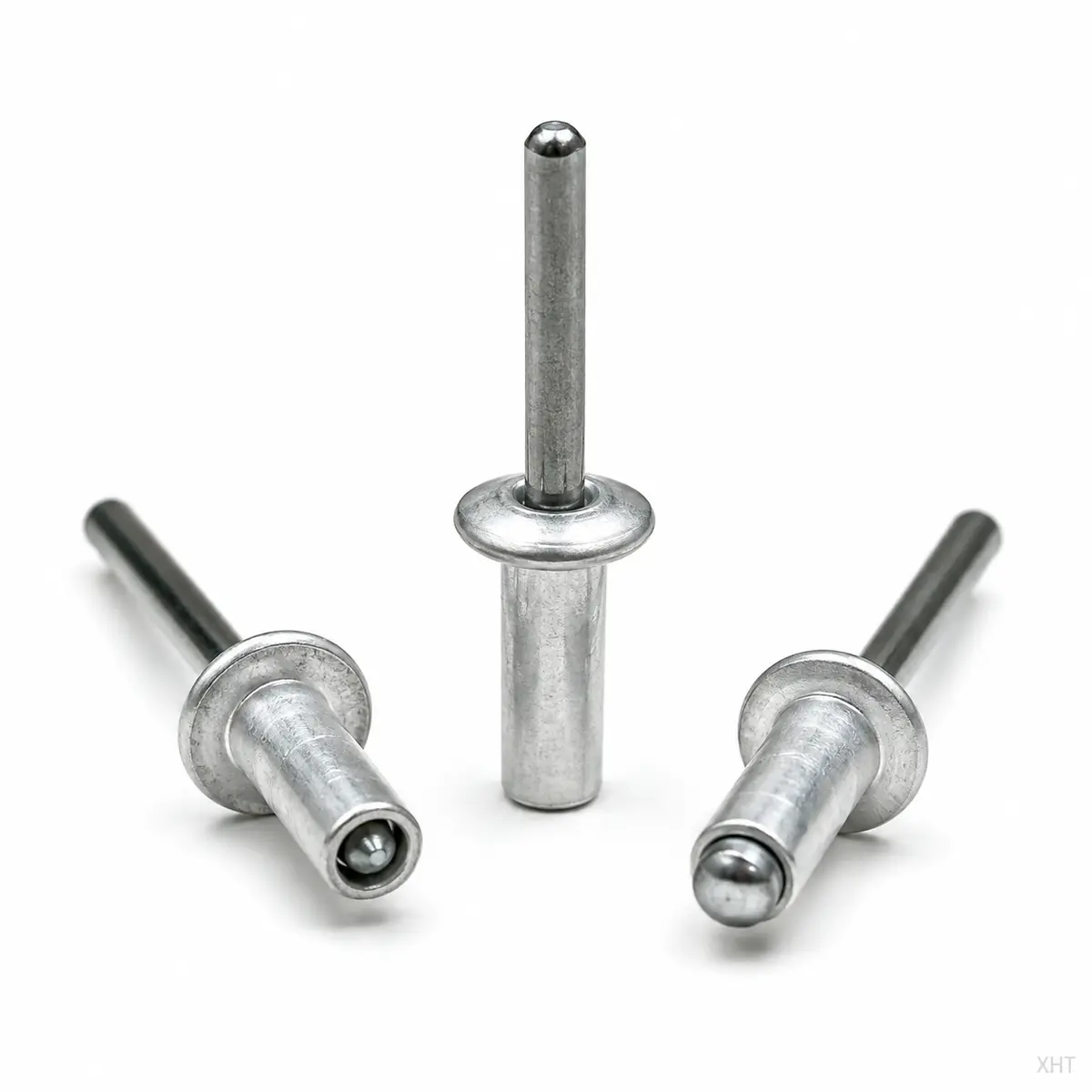

DIN 7337 Blind RivetRepresentative product image. Final dimensions, material, finish and packing follow the approved RFQ.
Blind rivet sourcing
DIN 7337 Blind Rivet
Blind rivets for one-side-access assembly of sheet materials, selected by body diameter, grip range, material combination, head style and installation requirements.
- DIN 7337 basis, rivet type or approved drawing
- Body diameter, hole size and total grip range
- Body and mandrel material combination
- Head style and access conditions
- Quantity, finish, colour, packing and destination
Catalogue ranges are RFQ guidance. Final compliance is controlled by the buyer-approved standard, drawing, sample and purchase order.
Quotation control
Information used to build the quotation
The exact standard or drawing, dimensions, material, finish, quantity and destination are confirmed before sourcing.
| Field | Product information | Order control |
|---|---|---|
| Requested designation | DIN 7337 blind rivet or approved equivalent | Standard, type or drawing confirmed |
| Joint geometry | Hole size, total material thickness and grip range | Confirmed per RFQ |
| Body / mandrel | Aluminium, steel or stainless combinations as specified | Confirmed per RFQ |
| Head style | Dome, countersunk or large flange | Confirmed per RFQ |
| Performance | Shear, tensile, mandrel retention or sealing requirement | Confirmed per RFQ |
| Packing & documents | Counts, labels, colour coding and agreed inspection records | Confirmed per RFQ |
DIN 7337:1991-08 is withdrawn. For a DIN 7337 enquiry, confirm the applicable ISO product standard and edition for the rivet head form and rivet/mandrel material combination, together with diameter, grip range and agreed tests. Catalogue references: DIN Media · DIN Media
Product overview
Grip range controls joint formation
Blind rivets are installed from one side of the joint. Correct selection depends on the combined material thickness, drilled-hole diameter, accessibility and required head style.
Material pairing affects strength and corrosion behaviour. State any sealing, mandrel-retention, vibration or appearance requirement in the RFQ.
What to include in your RFQ
- DIN 7337 basis, rivet type or approved drawing
- Body diameter, hole size and total grip range
- Body and mandrel material combination
- Head style and access conditions
- Quantity, finish, colour, packing and destination
Common ordering range
Common RFQ selections
Common DIN 7337 enquiry directions. Exact body length is selected from the required grip range.
| Selection | Common enquiry options | Control |
|---|---|---|

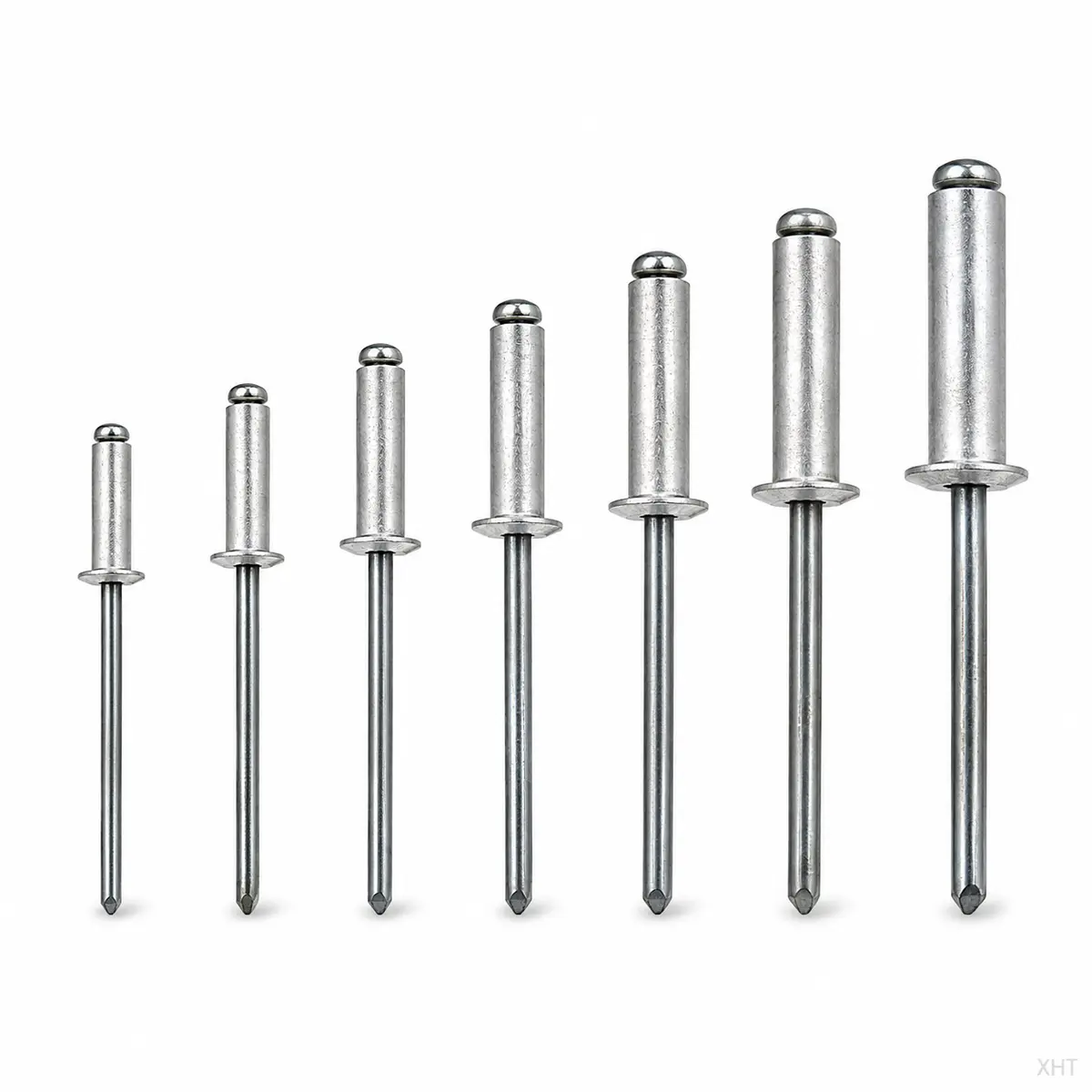

| Common body diameters | 2.4, 3.0, 3.2, 4.0, 4.8, 5.0, 6.0 and 6.4 mm | Confirmed per RFQ |
| Length / grip | Specify total joint thickness and required grip range | Confirmed per RFQ |
| Material combinations | Aluminium/steel, aluminium/stainless, steel/steel or stainless/stainless | Confirmed per RFQ |
| Head styles | Dome head, countersunk head or large flange | Confirmed per RFQ |
| Product variants | Open-end, closed-end or multi-grip by application | Confirmed per RFQ |
| Finish / appearance | Plain metal, plated, painted or colour-matched as agreed | Confirmed per RFQ |
Custom supply: Non-standard dimensions, materials, finishes and packing can be reviewed against a drawing, approved sample or complete specification.
Materials & applications
Options matched to the working environment
Options shown are sourcing directions, not a claim that every combination is stocked or interchangeable.
02
Material matching
Body and mandrel combinations are selected for strength and corrosion compatibility.
03
Special functions
Closed-end, large-flange, multi-grip and coloured options can be reviewed.
Quality & order coordination
A controlled route from RFQ to shipment
Inspection, certificates, traceability and packing are supplied only when agreed in the quotation and order.
01
Requirement check
Standard, drawing revision and critical dimensions are recorded.
02
Source matching
Cluster suppliers are compared against the confirmed specification.
03
Agreed inspection
Dimensions, finish and documents are checked to the agreed scope.
04
Packing follow-up
Labels, protection, consolidation and shipment details are coordinated.
Product RFQ
Request a quotation for DIN 7337 Blind Rivet
Send a drawing, specification, photo, product list or project requirement. Mark any field that cannot be substituted.
- DIN 7337 basis, rivet type or approved drawing
- Body diameter, hole size and total grip range
- Body and mandrel material combination
- Head style and access conditions
- Quantity, finish, colour, packing and destination
Fast quotation route
Send your product requirements
Include the product standard or drawing, size, material, finish, quantity and destination. Files up to 5 MB can be attached in the RFQ form.Maximum 3 MB per file.
